Shanghai Urban Rail Transit recent construction plan (2010-2020)

  • slider
  • slider
by Alex
8. January 2015
Category:   Uncategorized

Shanghai Urban Rail Transit recent construction plan (2010-2020)
Environmental Impact Assessment publicity

　　Company: Shanghai Academy of Environmental Sciences
Date: April 2, 2009 a planning background and overview 　　(1) the status quo of urban rail transit network operator Shanghai 　　Currently, Shanghai urban rail transit network characteristics have been presented, the network began to show effect . 2007 With the “three-line two” (Line 6, Line 8 Phase I, on the 9th Line of experimental operation, the 1st line extends north three stations, on the 4th line to achieve loop operators) after the opening, Shanghai The total number of urban rail transit network operators to reach 8 lines, the total length of lines in operation reached 235km, covering the city’s 13 administrative regions, forming a “one ring, the seven rays, nine transfer stations, nine stations collinear” network operator pattern.　　Completion of the line showing the overall operations of the total passenger traffic increased year by year, traffic efficiency significantly improved service levels gradually improve operational characteristics.In recent years, rail traffic in urban public transport systems play an important role in.

Table 1 List of traffic situation Shanghai rail line operators
No. Line Name Line range Operating line length (km) Station number (Block)
1 Rail Transit Line 1 Xinzhuang – Fujin Road 36.9 28
2 Rail Transit Line 2 Songhong Road – Zhangjiang Hi-Tech 24.2 17
3 Rail Transit Line 3 Shanghai South Railway Station – Jiang Yang Road 40.2 28
4 Metro Line 4 Loop 33.8 17
5 Rail Transit Line 5 Xinzhuang – Minhang Development Zone 16.6 11
6 Metro Line 6 Hong Kong City Road – Yeongam, South 31.1 27
7 Metro Line 8 City Light Road – Yaohua Road 21.9 Twenty one
8 Metro Line 9 Songjiang New City – Espa 30.5 12
Total 235 161
　　(2) 2005 prepared by the recent construction plan
in April 2005, Shanghai Shentong Metro Group Co., organize the preparation of the “Shanghai Rail Transit recent planning”, to 2012, including the length of the line has been operating, Shanghai will form the rail network size of about 567km, Table 2.
In the plan, based on the preparation of the hospital, I completed the “Shanghai Urban Rail Transit Immediate Plan Environmental Impact Report,” and the approval by the Ministry of Environmental Protection.

Table basic network 2 formed in 2012
Line Termini Length
(km)		 Station
(Block)
Line 1 Fujin Road Xinzhuang ~ 37.8 28
Line 2 Xu Jing – Pudong Airport 64.0 31
Line 3 Jiang Yang Road, Shanghai South Railway Station ~ 40.7 29
Line 4 Hongqiao Road – Baoshan 22.3 17
Line 5 Xinzhuang ~ Minhang Development Zone 17.2 11
Line 6 Hong Kong City Road – Jiyang 33.1 28
Line 7 Luodian ~ Pudong Expo Center 45.0 33
Line 8 City Light Road – Aerospace Park 41.9 32
Line 9 Minsheng Road, Songjiang New City ~ 46.3 Twenty three
Line 10 Hongqiao hub – the new Bay City 36.0 31
The northern section of Line 11 Jiading Anting ~ ~ Luo Shan 66.9 34
The southern section of Line 11 Longyang – Harbor City 59.5 12
Line 12 Qixin ~ on River Road 39.5 31
On the 13th Line of Hua Jiang Nanjing West Road ~ 16.3 14
Total 567 354
　　(3) recent planning a new round of construction projects the size and composition

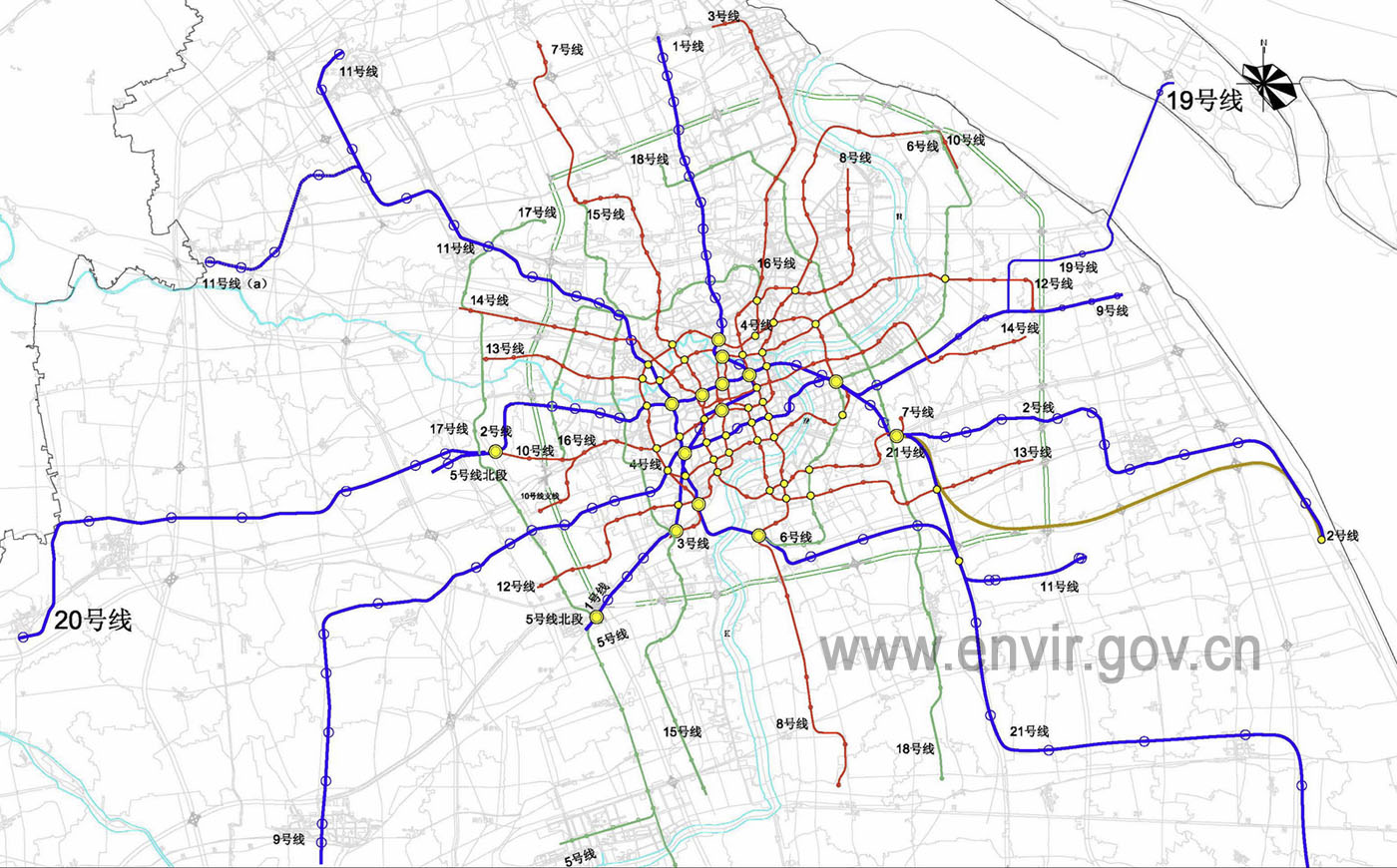

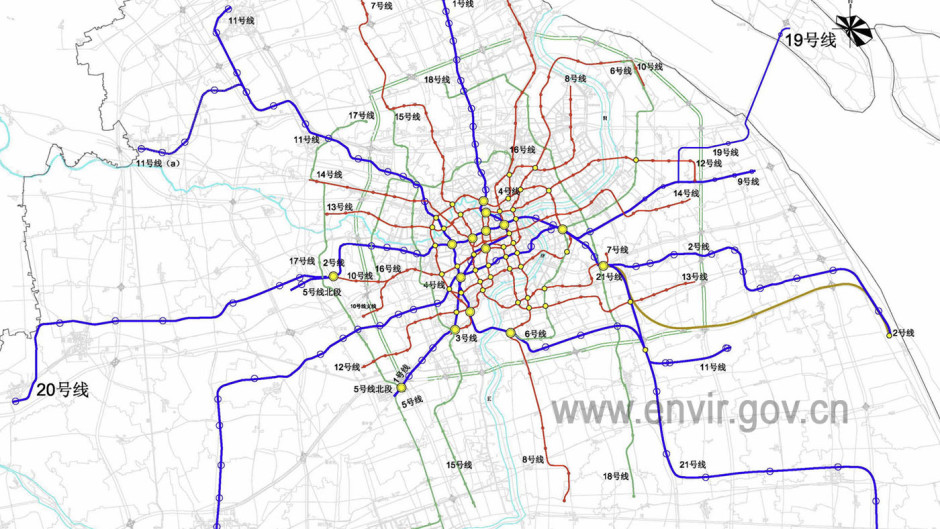

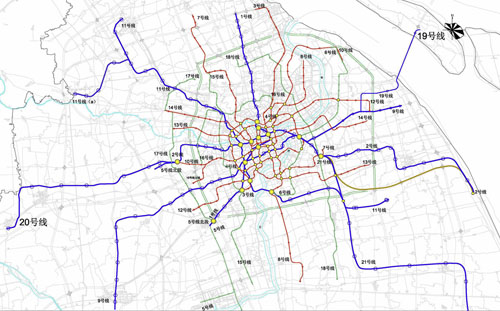

of this year, on the basis of the existing rail network planning, combined with “support key areas of urban development and construction, services, and construction of affordable housing suburbs, enhance foreign transportation hub supporting capacity, continue to support the development of Pudong New Area, open, complete and encrypted central city rail network, “the principle of reciprocity. Shanghai Shentong Metro Group Co. once again organizing the preparation of the recent construction plan, a new round of construction projects in the period 2010-2020 a total of 13, including five extension lines and eight new lines, the total line length of about 310km, Station 189 (Table 3). So far, the 2020 Shanghai urban rail transit network will reach a total of about 877km, see Figure 1.

Table 3, a short-term construction planning and construction of a new project (2010-2020)

Line Type

No.

Line Name

The scope of works

 Line length
(km)		 Station number
(a)

Both
have
extended
stretch
line

1

Line 5 II

Dongchuan Road – Southbridge Town

20.7

8

2

Line 9 Phase

Songjiang New City – Songjiang South Railway Station

6.5

3

Minsheng Road – Caolu

14.5

8

3

Line 10 Phase II

New Bay City – Waigaoqiao

9.4

5

4

Line 11 Phase III

Luo Shan – Yellow House

9.4

3

5

Line 13 Phase II

Nanjing Road – Zhangjiang

22.5

17

Subtotal

83

44

New
construction
line

1

The northern section of Line 5

Hongqiao hub – Xinzhuang

14.3

11

2

Line 14

River Bridge – Jinqiao

36.4

29

3

Line 15

Anson Road – Zizhu Science Park

40.1

28

4

On the 16th Line of

Hongkou Football Stadium – Zoo

19

17

5

On the 17th Line of

Hongqiao hub – Baoshan Industrial Park

17.2

13

6

On the 18th line

Field Road – Hangtou

44.3

30

7

On the 19th Line of

Jinqiao – Changxing Island

20.6

6

8

Route 20

Hongqiao hub – Oriental Land

35.2

11

Subtotal

227

145

Total

 Total 310 189

Second, the construction unit name and contact details;
Shanghai Shentong Metro Group Co., Ltd.
Contact: Wang Ting
Tel: 63189188 Third, to undertake environmental impact assessment agency evaluations of the name and contact information: 　　Shanghai Academy of Environmental Sciences 　　Certificate Number: State EIA A word Certificate No. 1801 　　Address: 508 Qinzhou Road, Shanghai Zip Code: 200233 　　Contact: Fan Binjuan Fax: 64085119-2643 　　Email: gdjtwlgh@yahoo.com.cn (Please specify “rail”) . Fourth, the environmental impact assessment The main content of the work procedures and 　　work processes: data collection, site reconnaissance, survey analysis, state of the environment monitoring, prediction and evaluation of environmental impact, a comprehensive analysis of (public participation, environmental management, environmental monitoring, environmental protection measures, the risk of accidents), concluded, the preparation of the report, the expert review, send the environmental protection department for approval. 　　Main tasks: in rail traffic on the basis of the status quo and retrospective analysis, considering the recent planning a new round of influence within the scope of the evaluation of the socio-economic and environmental impact of proposed environmental planning for specific construction projects this next level of planning and included in this plan assessment and environmental protection requirements, suggestions, and comments from the environmental point of view and way of alignments. Five of the major issues for public comment 　　will mainly focus on public participation “Rail existing environmental problems”, and “a new round of construction planning” view; planning and implementation of major environmental impacts that may arise; planning and implementation of environment constraints; planning and implementation of environmental protection measures to be taken; the overall attitude of the rail network to carry out the work areas. 6, the main way of public comments　　after this information public, the public can send e-mail, telephone, letters, interviews and other ways to express their views and opinions on the EIA work plan to the designated address. Before the EIA report and report preparation process basically been completed and submitted for approval, will take the questionnaire, public notices and other ways to further public comment. 　　Near future will be “online public opinion survey” on this site, so stay tuned. 　　[Note]: Please try to provide detailed public contact at the same time to express their views.
